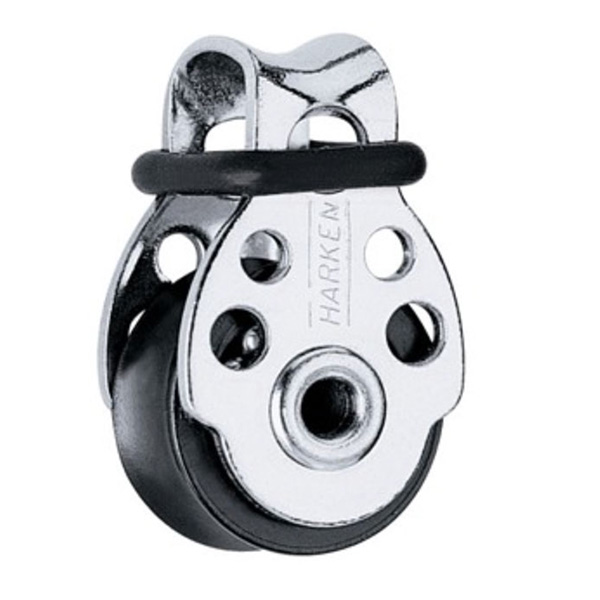

Harken 16mm Micro Block
Harken # 404
The Harken 404 16mm Micro is Harken's smallest block. It's perfect for small synthetic control lines found on high-tech dinghies like the Laser or RS Aero. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.
Specifications
| Sheave (mm) | 16 mm |
| Sheave (in) | 5/8" |
| Length (mm) | 29mm |
| Length (in) | 1 1/8" |
| Weight (g) | 10 g |
| Weight (oz) | .33 oz |
| Maximum Line (mm) | 5 mm |
| Maximum Line (in) | 7/32" |
| Maximum Working Load (kg) | 113 kg |
| Maximum Working Load (lb) | 250 lb |
| Breaking Load (kg) | 544 kg |
| Breaking Load (lbs) | 1200 lbs |
